Saleslogix "Add to ad-hoc group" Smart Part
Posted By: nicocrm on March 26th, 2008 in Programming, Saleslogix
No Gravatar

As you may know the “add to group” functionality is not currently implemented in the web client. There is a way to create a new ad-hoc group by selecting records from an existing group but no way to add records to an existing group (not to mention that the interface is a bit hard to use). In our case this was a crucial piece because the customer wanted to rely on the ability to add records to the “SyncSalesLogix” group to have them picked up by the Lotus Notes sync. Fortunately there is enough functionality in the API to build it ourselves. I created an “Add To Adhoc Group” smart part and uploaded it to the MSDN Code Gallery in case it is of interest to anyone else.

It should work with all entities for which the LookupView component works, though I only tested it with Accounts, Contacts and Opportunities. It is available as both source code and bundle-based installation and released under the open source Microsoft Public License (which is actually the only one available for MSDN Code Gallery).

One thing I should mention – it does not work very well for the Admin user. So make sure you test it out with a regular user.


Screenshot of the Add To Adhoc Group view


Improve performance of SlxWeb – Compression, Caching
Posted By: nicocrm on March 21st, 2008 in Saleslogix
No Gravatar

You can achieve a substantial improvement of the performance of SlxWeb by making sure the static data gets cached, and the compressible data gets compressed. There are some instructions on how to do that in the Saleslogix documentation but unfortunately they are incomplete and inaccurate so here are a few steps you want to make sure you take:

  • Obvious first step – make sure the <compilation> tag in web.config has debug=false (which it is by default, but we often turn it to true while developing). Leaving it to true will turn off some of the caching options.
  • Enable compression in IIS – in addition to the steps outlined in the doc (right click on “Web Sites”, go to Service, check “Compress static files” and “Compress application files”), run the following:
    • Start a command prompt and go to \inetpub\adminscripts
    • To ensure aspx and axd (web resources) are compressed, and to ensure the DLL aren’t (which would mess up mail merge), run (on one line):cscript adsutil.vbs SET W3SVC/Filters/Compression/gzip/HcScriptFileExtensions asp aspx axd
    • Also run this one (same thing for the deflate algo): cscript adsutil.vbs SET W3SVC/Filters/Compression/deflate/HcScriptFileExtensions asp aspx axd
    • To ensure Javascript and css are compressed, run: cscript adsutil.vbs SET W3SVC/Filters/Compression/gzip/HcFileExtensions js css htm html txt
  • Go to the properties of the “jscript”, “css” and “images” directory, go to Http Headers, turn on the content expiration
  • Restart IIS. Test with fiddler or a network capture tool to make sure it is working.

I should mention that these apply to IIS 6 only. Thankfully I have only had to set up SlxWeb on one Windows 2000 server so far.


On the Coolness of unit-testing Saleslogix
Posted By: nicocrm on March 20th, 2008 in Programming, Saleslogix
No Gravatar

I admit it, I am a unit-testing junkie. I think it all come down to my immense laziness – I will go to great length to avoid the extra work of having to manually test my programs.

Until now the options for unit-testing in Saleslogix were very limited. I did go through the effort of writing a few automated tests in VBScript but for the most part it was not really justifiable – it is hard to maintain the separation of concern essential to unit testing and usually if I go to the trouble of forcing the concepts of encapsulation and polymorphism into vbscript I end up introducing more bugs than what I catch with unit testing.

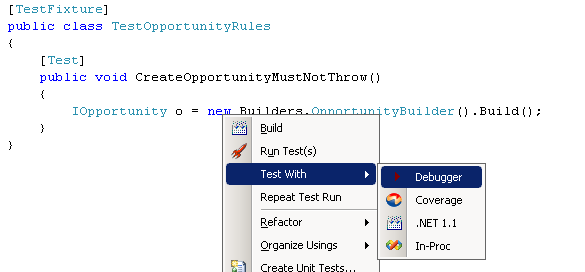

Not so with the New and Improved Saleslogix. I want to demonstrate how unit testing in the Saleslogix web client can make our work faster, easier, and help us produce better quality code through a simple problem I faced today on the Insert Opportunity screen – the “OnCreate” opportunity rule would crash with a NullReferenceException. This of course has a very selfish goal – the more people we have excited about the benefits of automated unit testing in Saleslogix, the more Sage will be inclined to make their code testable (and maybe encourage them to use automated testing themselves!)

You could troubleshoot the issue by copying the rule to your own assembly, sprinkle it with logging statements, associate it in the architect, redeploying the web site, try the form again, then try and figure out where the error is. Once you have compiled the rule into your own assembly you can actually also open it in the Visual Studio debugger which will save a lot of time but you still have to go through those build, deploy, login, and trigger steps. I don’t know about your machine but it takes me about 1 1/2 minute to do a full build and deploy, then the debugger has to compile the site to open it which also takes 2 to 3 minutes, after which it still takes 30 to 50 seconds to log into the site and get to the right page. By that time my coffee is getting cold. And if you want to make a change to the rule and try again, you have to restart from the beginning… argh!

Enter unit testing. When unit testing you will still be loading the NHibernate configuration, dynamic methods etc, but you won’t have the overhead of the web server, javascript, painting the screens, or even rendering any output – you are cutting straight to the code you need to test.

So getting back to my problem. I can prepare a tiny method in my test class containing just one line of code: EntityFactory.Create(), right click it and run the test (in this picture it is shown as a call to a builder class, but this is just a wrapper around the EntityFactory):

Of course I had set up the dynamic method to call up my assembly (same thing that you would normally do through the AA interface but since we are just testing right now it is quicker to do it directly):

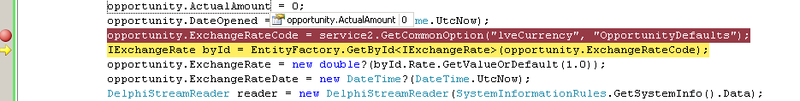

This fails (of course – as expected) and gives me the traceback I needed. OK, line 145! Let’s set a breakpoint and re-run it (note that you would have the same thing if you opened the web site in the debugger – this is just a LOT faster):

Oh well, the option must not be set, let’s set it in SQL and re-run the test (if you were testing on the live system you would have to restart the web server to get it to re-read the options at this point):

That’s right, 5.14 seconds! How long does it take you to restart IIS and relog into the web client? And perhaps the best part – I can now keep the test in the collection and it will automatically catch any similar problem in the 7.2.3 upgrade.

Hope this will convince some of the power in unit testing. You will want to check this post on how to set your environment up for unit testing: Unit Testing SLX – 7.2.2 Update. If you need any help send me an email or a comment.


Accessing Saleslogix Groups Programmatically (part 1)
Posted By: nicocrm on March 19th, 2008 in Programming, Saleslogix
No Gravatar

In a previous post I examined how to get access the entity data (basically the ORM layer, as well as the dynamic methods piece) using the Saleslogix assemblies from outside of the web client. Obviously this is vital for unit testing, but also has some interesting application for external application. In this next installment I would like to look at the Groups API. In addition to being useful in unit testing and external application I feel the Groups API is poorly documented so a bit of exploring would help.

First off remember that most of the group access is done via a COM component called GroupTranslator. The goal of that component (which I presume was written in Delphi) is to translate the Group blob stored within the database (in the Plugin table) to an XML description and vice versa. It is not terribly reliable and Sage is notoriously slow about releasing fixes for it, but it is what it is. For the general cases it is probably still better than rolling out your own translator.

Next take a look (with Reflector) at the API offered in the 7.2 client. GroupInfo is the main one – it is full of useful static methods for manipulating the groups. Unfortunately they are not documented and some of them look very buggy so we have to thread carefully when dealing with it. It also has a few instance methods but watch out – it makes heavy use of globals so I would avoid messing too much with several groups at the same time. Another one we have to deal with is GroupContext – this has some information about the group that the web user is currently using (sadly it has a few pitfalls as we will see below). Very often when you use a method to retrieve the group’s data it seems to set the current group in GroupContext (as a global). So watch out for that. Sometimes you have to break down and examine the group’s XML yourself (as returned by the group translator) but I prefer to avoid that – my hope is that eventually the GroupInfo API will be fixed to be more reliable. Here are a few of my favorites:

  • GroupInfo.GetGroupIdFromNameFamilyAndType – don’t you hate having to figuring that one out in SQL on the LAN client?
  • GroupInfo.GetGroupInfo – static method to build a group info object, knowing the plugin id.

  • GroupInfo.GetGroupDataReader – I looked at the code and I am pretty sure this won’t release the connection correctly, so I would stay away from that one for now (too bad, it sounds yummy, and does not have the global reliance of the next one)
  • GroupInfo.GetGroupDataTable – almost as good as GetGroupDataReader, and does not have the connection problem. Only works when paging is enabled which can only be done using the last 2 overloads. Be careful if you use those because they will mess with the current (global) group context (not sure what the exact effect would be).
  • GroupInfo.GetGroupKeyFieldIDs – not bad to get a group’s data. One of the rare data retrieval methods that doesn’t affect the current global group. Unfortunately this is currently broken so do not use it.
  • GroupInfo.GetGroupIDs – I am not sure what the difference in purpose is with the previous one. But anyway, this uses the GetGroupDataReader method, so it will leak connection – do not use.
  • GroupInfo.GetGroupList – gets you a list of groups for a specific entity. Watch out retrieving some of the properties like IsAdHoc – some are very very slow. So it will be easier to access the DB directly in most cases I think.
  • GroupInfo.AddAdHocGroupMember (and AddAdHocGroupMembers) – to add to an adhoc group (works fine)
  • GroupInfo.CreateAdhocGroup – create a new adhoc group (this works well)
  • GroupInfo.AddLookupCondition – to add a condition to a dynamic group (didn’t try it but it looks OK)
  • GroupInfo.SaveAsNewGroup – save group to database (should work fine)
  • GroupInfo.getGroupSQL – this is a private method but I just had to mention it anyway. For example to retrieve the “where” part of the SQL:

    MethodInfo method = typeof(GroupInfo).GetMethod("getGroupSQL",
        BindingFlags.Instance | BindingFlags.NonPublic);
    String sql = (String)method.Invoke(currentGroup,
       new object[] { "WHERE", currentGroup.GroupXML, false, 1, 1, null });

    Unlike the GroupInfo.GroupSQL property, this one actually works. The first parameter (where I put “WHERE”) is the part of the SQL that you want to retrieve. You can use WHERE, FROM, SELECT, ORDERBY. WHERE seems to expand all parameters, even things like :UserID. The second parameter is whether you want to do paging or not. Usually false. The next 2 parameters are related to paging, but make sure you do NOT set them to 0. Last parameter is the column to sort by, but this is ignored unless you are using paging. If you use “ALL” as the SQL part, you will get the whole SQL for the group, but none of the parameters won’t be expanded.

  • GroupInfo.GetGroupLayoutsNodes – you can use this to get the columns from the group.
  • GroupInfo.WhereSQL – SQL condition for the group. Equivalent to getGroupSQL(“WHERE”). Works well.
  • GroupInfo.FromSQL – the part after the FROM keyword. Equivalent to getGroupSQL(“FROM”). Works well.
  • GroupInfo.GroupSQL – access the actual group SQL (same as in the LAN client). Doesn’t return the condition correctly (always returns it as “1=2″).

As a practical example here is an ugly little wrapper class with a working “GetGroupEntityIds” method:

using System;
using System.Collections.Generic;
using System.Text;
using System.Reflection;
using Sage.SalesLogix.Client.GroupBuilder;
using System.Xml;
using Sage.Platform.Orm;
using System.Data;

namespace SSSWorld.Slx72.Utility
{
    /// <summary>
    /// Helper methods for groups.
    /// </summary>
    public class GroupHelper
    {
        /// <summary>
        /// Return all entity ids on that group.
        /// </summary>
        /// <param name="groupId"></param>
        /// <returns></returns>
        public static String[] GetGroupEntityIds(String groupId)
        {
            String sql = GetGroupKeysSQL(groupId);
            using (SessionScopeWrapper session = new SessionScopeWrapper())
            {
                using (IDbCommand command = session.Connection.CreateCommand())
                {
                    command.CommandText = sql;
                    using (IDataReader reader = command.ExecuteReader())
                    {
                        List<String> ids = new List<String>();
                        while (reader.Read())
                        {
                            ids.Add(reader.GetString(0));
                        }
                        return ids.ToArray();
                    }
                }
            }
        }

        /// <summary>
        /// Retrieve the full group SQL.
        /// </summary>
        /// <returns></returns>
        public static String GetGroupSQL(String groupId)
        {
            GroupInfo groupInfo = GroupInfo.GetGroupInfo(groupId);
            StringBuilder sqlBuilder = new StringBuilder();
            sqlBuilder.Append("SELECT ")
                .Append(GetGroupSQLPart(groupInfo, GroupSqlPart.SELECT));
            BuildGroupFromClause(sqlBuilder, groupInfo);
            return sqlBuilder.ToString();
        }

        /// <summary>
        /// Retrieve the SQL appropriate for reading the group entity ids.
        /// </summary>
        /// <returns></returns>
        public static String GetGroupKeysSQL(String groupId)
        {
            GroupInfo groupInfo = GroupInfo.GetGroupInfo(groupId);
            XmlNodeList layoutNodes = groupInfo.GetGroupLayoutNodes();
            XmlElement layoutNode = (XmlElement)layoutNodes[0].ParentNode;
            String mainTable = layoutNode.GetAttribute("maintable");
            StringBuilder sqlBuilder = new StringBuilder();
            sqlBuilder.Append("SELECT A1.")
                .Append(mainTable)
                .Append("ID ");
            BuildGroupFromClause(sqlBuilder, groupInfo);
            return sqlBuilder.ToString();
        }

        public static String GetGroupSQLPart(GroupInfo groupInfo, GroupSqlPart part)
        {
            MethodInfo getGroupSQL = typeof(GroupInfo).GetMethod("getGroupSQL", BindingFlags.Instance | BindingFlags.NonPublic);
            return (String)getGroupSQL.Invoke(groupInfo, new object[] { part.ToString(), groupInfo.GroupXML, false, 1, 1, null });
        }

        /// <summary>
        /// Which part of the SQL do you want to select
        /// </summary>
        public enum GroupSqlPart
        {
            /// <summary>
            /// After the WHERE (WHERE keyword not included)
            /// </summary>
            WHERE,
            /// <summary>
            /// After the ORDER BY (ORDER BY keyword not included)
            /// </summary>
            ORDERBY,
            /// <summary>
            /// After the SELECT (SELECT keyword not included)
            /// </summary>
            SELECT,
            /// <summary>
            /// After the FROM (FROM keyword not included)
            /// </summary>
            FROM
        }

        #region Private Methods

        /// <summary>
        /// Append the FROM and subsequent clauses to the SQL builder.
        /// </summary>
        /// <param name="sqlBuilder"></param>
        /// <param name="groupInfo"></param>
        private static void BuildGroupFromClause(StringBuilder sqlBuilder, GroupInfo groupInfo)
        {
            sqlBuilder.Append(" FROM ")
                .Append(groupInfo.FromSQL);
            String where = groupInfo.WhereSQL;
            if (!String.IsNullOrEmpty(where))
                sqlBuilder.Append(" WHERE ").Append(where);
            String orderBy = GetGroupSQLPart(groupInfo, GroupSqlPart.ORDERBY);
            if (!String.IsNullOrEmpty(orderBy))
                sqlBuilder.Append(" ORDER BY ").Append(orderBy);

        }

        #endregion
    }
}

Another problem with GroupInfo is that almost all of its methods will want to call GroupContext.GetGroupContext for one reason or another, and GetGroupContext is hard-wired to HttpContext, so not very testing-friendly. This can be fixed in IL though I have not bothered yet.

That’s it for now – this turned out to be a lot harder than I thought it would be. It was actually much harder than on the LAN client because of the poor (or rather, non-existent) documentation and the fact that most of the methods shipped do not actually work. I certainly do not want to turn this post into a rant, but I still have to mention how truly appalling that is. The good side of this coin is that we know the Saleslogix devs are hard at work on the next version and from what I have seen it will probably include a major overhaul of the group interface (and the API, presumably) which might explain why they are not focused on fixing this one. Next installment will be how to get to this stuff from outside of the web client but I thought this short overview of the API warranted a post by itself.


Find the hidden smart part
Posted By: nicocrm on March 18th, 2008 in Saleslogix
No Gravatar

How to programmatically find if a smart part is present on a page (for example, if the behavior of one smart part depends on whether another smart part is loaded… in my case I wanted to show a button on my smart part ONLY if some other custom smart part had been added to the page):

  • If the smart part you need to find is on any workspace but DialogWorkspace, you can use FindControl (or FindControlRecursive – google for the code). Remember the smart part will only show up if it is displayed in the particular mode (for example if it is a Detail mode smart part it won’t be anywhere in List mode)
  • If the smart part is on the DialogWorkspace it is a bit trickier. If it is not currently displayed, it won’t be there as a control, but instead it will be in the private variable _mySmartParts of the DialogWorkspace.

So here is my FindSmartPart function:

/// <summary>
/// Find a smart part under the specified work item.
/// If the smart part is not on the page, return null.
/// </summary>
/// <param name="parent"></param>
/// <param name="smartPartId"></param>
/// <returns></returns>
private Control FindSmartPart(UIWorkItem parent, String smartPartId)
{
    foreach (var ws in parent.Workspaces)
    {
        if (ws.Value is DialogWorkspace)
        {
            // in this case peek in _mySmartParts
            FieldInfo field = typeof(DialogWorkspace).GetField("_mySmartParts", BindingFlags.Instance | BindingFlags.NonPublic);
            if (field == null)
                throw new InvalidOperationException("Field _mySmartParts not found in DialogWorkspace");
            Dictionary<object, ISmartPartInfo> smartParts = (Dictionary<object, ISmartPartInfo>)field.GetValue(ws.Value);
            if (smartParts != null)
            {
                foreach (object smartPart in smartParts.Keys)
                {
                    Control c = smartPart as Control;
                    if (c != null && c.ID == smartPartId)
                        return c;
                }
            }
        }

        foreach (var smartPart in ws.Value.SmartParts)
        {
            Control c = (Control)smartPart;
            if (c.ID == smartPartId)
                return c;
        }
    }
    return null;
}

Well, nobody said it would be pretty – but, it gets the job done.
